3.7 V Lipo Battery 23mAh Smallest Batteries − Model LP311013
10.00$
Flat Lipo Batteries Small Volume Pricing (USD $)
| QTY BREAK | UNIT PRICE |
|---|---|
| 1+ | $10.00 |
| 20+ | $5.00 |
| 50+ | $3.50 |
| 100+ | $2.90 |
Contact us for a quotation for production quantities, customizations and integration such as custom wire length or with JST/ Molex connectors.

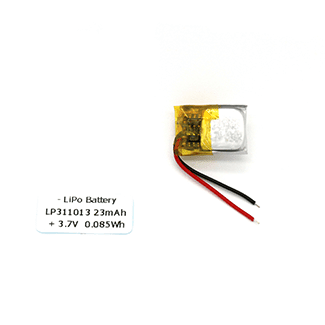

3.7 V Lipo Battery LP311013 23mAh Smallest Battery In The World
The world’s smallest polymer lithium battery, most of the small lithium batteries are used in wearable devices and GPS positioning products. Select 3.7V Smallest LiPo Battery for your prototype, Small Quantity Orders Available, Get a Quote. Specialized in LiPo Battery, Leading Manufacturer, Premium Quality, Cost Saving, Provide OEM&ODM Services. Add JST/Molex Connector.
- Factory price & High quality
- Good consistency, low self discharge
- Light weight, small size
- High stability
- High discharge rate
- Quality and security guaranteed, with CE, UN38.3 approval
| LiPo Battery Mechanical Characteristics | |
| Lipo Cell | LP311013 |
| Lithium Battery PCM | No |
| NTC | No |
| Configuration | 1S1P |
| Battery Weight | appr. 0.46g |
| Lipo Battery Dimension | 3.1mm*10mm*13mm |
| Lithium Battery Electrical Specification | |
| Lipo Battery Rated Capacity | 23mAh min, 25mAh typ. |
| Lithium Polymer Battery Nominal Voltage | 3.7V |
| Lipo Battery Wat-Hour Rating | 0.0851Wh |
| Max. Operating Voltage Range | 2.75V to 4.20V |
| Max. Charge Voltage | 4.2V ±50mV |
| Max. Charge Current | 11.5mA |
| Discharge Current | 23mA |
| Discharge Cut Off | 2.75V |
| Internal Impedance | <200mΩ |
| Lipo Battery Expected Cycle Life @ (0.5C/0.5C) @ 23±5°C | 500 cycles ≥ 80% |
Payment
Payment methods: Paypal, T/T
Shipping
1. Delivery: DHL door to door 10-15 work days.
2. Item will be shipped within 5-7 business days after the payment.
3. If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4. Please make sure your address is matched with the finally shipping address before you pay.
5. In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted, thanks!
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the Lithium polymer battery, such as: Capacity, Sizes Applications, Voltage, Leads wire, Terminals. The minimum order quantity for custom lipo battery is 5000 pieces.
Keywords
smallest battery in the world, 20mah lipo, 3.7 volt 20mah slim lipo, ultra thin li polymer, thin lipo battery
