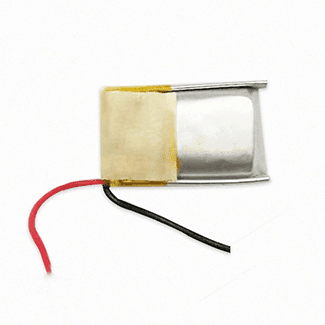

3.7 V Small Battery Rechargeable LP191320 25mAh
10.00$
Slim Lipo Battery Small Volume Pricing (USD $)
| QTY BREAK | UNIT PRICE |
|---|---|
| 1+ | $10.00 |
| 10+ | $5.00 |
| 50+ | $3.50 |
| 100+ | $2.90 |
Contact us for a quotation for production quantities, customizations and integration such as custom wire length or with JST/ Molex connectors.
Out of stock
3.7 V Small Battery Rechargeable LP191320 25mAh
High Quality 3.7 V Small Li-Polymer Battery | 100% Lithium Polymer Battery | 500 cycles | Built-in PCM NTC IC MOS | Custom Length Cables & connector | Sample & Small Order Acceptable | Fast Lead time 3 days | Worldwide Shipment by UPS DHL FedEx | Ask Data sheet Now | Huge Range Stock | Ask Samples for Prototype | Safe LiPoly Battery with Japan IC MOS NTC | Fast Shipment by UPS DHL | Short Delivery Time | Certification IEC62133 MSDS UN38.3 CE EMC EN61000 | PayPal Payment
| LiPo Battery Mechanical Chracteristics | |
| Lipo Cell | LP191320 |
| Lithium Battery PCM | No |
| NTC | No |
| Configuration | 1S1P |
| Battery Weight | appr. 0.5g |
| Lipo Battery Dimension | 1.9mm*13mm*20mm |
| Lithium Battery Electrical Specification | |
| Lipo Battery Rated Capacity | 25mAh min, 28mAh typ. |
| Lithium Polymer Battery Nominal Voltage | 3.7V |
| Lipo Battery Wat-Hour Rating | 0.0925Wh |
| Max. Operating Voltage Range | 2.75V to 4.20V |
| Max. Charge Voltage | 4.2V ±50mV |
| Max. Charge Current | 12.5mA |
| Max. Continuous | |
| Discharge Current | 25mA |
| Discharge Cut Off | 2.75V |
| Internal Impedance | <200mΩ |
| Lipo Battery Expected Cycle Life | 500 cycles ≥ 80% |
| @ (0.5C/0.5C) @ 23±5°C |
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL door to door 10-15 work days.
2.Item will be shipped within 5-7 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted, thanks!
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the Lithium polymer battery such as: Capacity, Sizes Applications, Voltage, Leads wire, Terminals. The minimum order quantity for custom lipo battery is 5000 pieces.
Keywords:
3.7 v small battery, thin rechargeable lipo, small li polymer battery
