3.7 Volt Battery Rechargeable LP191622 32 mAh Battery

10.00$

1 Star2 Stars3 Stars4 Stars5 Stars (1 votes, average: 5.00 out of 5)
Loading...

Small Volume Pricing (USD $)

QTY BREAKUNIT PRICE
1+$10.00
10+$5.00
50+$3.50
100+$2.90

Contact us for a quotation for production quantities, customizations and integration such as custom wire length or with JST/ Molex connectors.

Li Po Battery Description

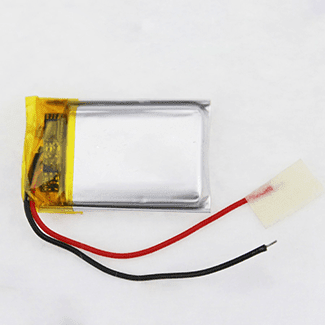

3.7 Volt Rechargeable Lithium Ion Battery LP191622 32mAh

Lipoly Batteries Custom design 3.7 volt lithium ion battery, 7.4 V /11.1 V battery pack. 18 years manufacturer of military, robotic, medical, instrument . More than  3000 Successful Cases. Custom lithium Ion Battery Design support  24*7 Services.

  • Factory price& High quality
  • Good consistency, low self discharge
  • Light weight and small size lithium polymer battery
  • High stability & High discharge rate
  • Quality and security guaranted, with CE,UN38.3 approval.
LiPo Battery Mechanical   Chracteristics
Lipo CellLP191622
Lithium Battery PCMNo
NTCNo
Configuration1S1P
Battery Weightappr. 2g
Lipo Battery Dimension1.9mm*16mm*22mm
Lithium Battery Electrical   Specification
Lipo Battery Rated Capacity32mAh min, 35mAh   typ.
Lithium Polymer Battery Nominal Voltage3.7V
Lipo Battery Wat-Hour Rating0.1184Wh
Max. Operating   Voltage Range2.75V to 4.20V
Max. Charge   Voltage4.2V ±50mV
Max. Charge   Current16mA
Max.   Continuous
Discharge   Current32mA
Discharge Cut   Off2.75V
Internal   Impedance<200mΩ
Lipo Battery Expected Cycle Life500 cycles ≥ 80%
@ (0.5C/0.5C) @ 23±5°C



Payment:

1.Payment methods : Paypal, T/T

Shipping:

1.Delivery: DHL door to door 10-15 work days.

2.Item will be shipped within 5-7 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!

FAQ

Q: If customized, what information should you provide?
A: You need to provide the basic specification of the Lithium polymer battery such as: Capacity, Sizes Applications, Voltage, Leads wire,Terminals. The minimum order quantity for custom lipo battery is 5000 pieces.

Keywords:

3.7 volt rechargeable lithium ion battery
