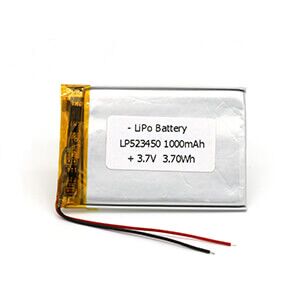

Small Lithium Polymer Battery 1000mAh − Model LP523450

15.00$

Lipoly Batteries Small Volume Pricing (USD $)

QTY BREAK UNIT PRICE
1+ $15.00
10+ $10.00
50+ $6.50
100+ $4.50

Contact us for a quotation for production quantities, customizations and integration such as custom wire length or with JST/ Molex connectors.

Small Lithium Polymer Battery 1000mAh LP523450

Lipoly Batteries Custom design lithium ion batteries, 3.7 V / 7.4 V / 11.1 V battery pack. 18 years manufacturer of military, robotic, medical, instrument. More than 3000 Successful Lipo Battery Cases. Custom 1000 mAh Lithium Polymer Battery, Design support. 24*7 Services. Li-ion, Lithium Polymer and Lithium Iron Phosphate batteries will power your day, every day.

  • Factory price & High quality
  • Good consistency, low self discharge
  • Light weight, small size
  • High stability
  • High discharge rate
  • Quality and security guaranteed, with CE, UN38.3 approval
LiPo Battery Mechanical   Characteristics
Lipo Cell LP523450
Lithium Battery PCM Yes
NTC No
Configuration 1S1P
Battery Weight appr. 20g
Lipo Battery Dimension 5.2mm*34mm*50mm
Lithium Battery Electrical   Specification
Lipo Battery Rated Capacity 1000mAh min, 1010mAh typ.
Lithium Polymer Battery Nominal Voltage 3.7V
Lipo Battery Wat-Hour Rating 3.7Wh
Max. Operating Voltage Range 2.75V to 4.20V
Max. Charge Voltage 4.2V ±50mV
Max. Charge Current 500mA
Discharge Current 1000mA
Discharge Cut Off 2.75V
Internal Impedance <200mΩ
Lipo Battery Expected Cycle Life @ (0.5C/0.5C) @ 23±5°C 500 cycles ≥ 80%



Payment
Payment methods: Paypal, T/T

Shipping
1. Delivery: DHL door to door 10-15 work days.
2. Item will be shipped within 5-7 business days after the payment.
3. If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4. Please make sure your address is matched with the finally shipping address before you pay.
5. In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted, thanks!

FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the Lithium polymer battery, such as: Capacity, Sizes Applications, Voltage, Leads wire, Terminals. The minimum order quantity for custom lipo battery is 5000 pieces.

Keywords
lithium polymer battery 1000mah, flat lipo batteries, 3.7v 1000mah lipo battery, thin lipo battery, 3.7 volt thin lipo
